设备介绍：
DSM版本：918+ 主板CPU：蜗牛星际J1900板 内存：8G DDR3 固态：移速SATA固态（msata在win微桌面识别，群晖安装时候识别不到） 方式：SATA固态安装在硬盘盒上，左边左边第一个位置。其他盘取出
【1】修改引导盘配置文件：
插在电脑上（win10为例），注意有弹出格式化提示，不要格式化。linux系统盘，win不识别正常。打开三个盘里面正常那个盘

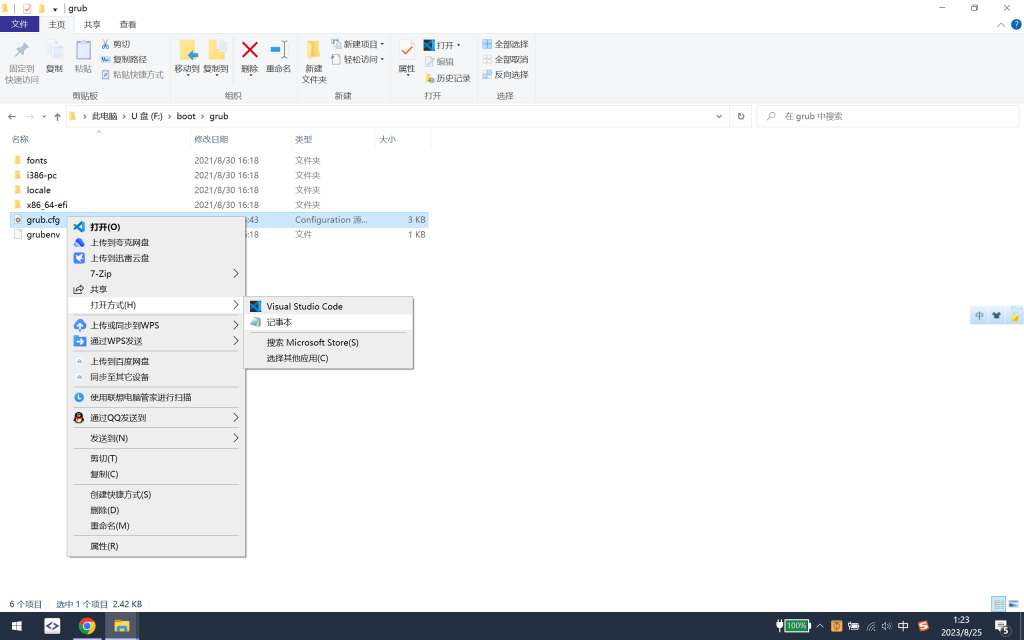

打开 boot / grub.cfg 用记事本编辑

核心点是这行，总的在两处 loglevel=15 DiskIdxMap=00 SataPortMap=1 SasIdxMap=0
#
### !!! WARNING – READ ME !!!
#
＃DO NOT edit this file. This file has been generated automatically by the loader generator.
＃If you were asked to use a pre-made image and asked by someone to edit this file DO NOT do it. The only
＃supported method of obtaining the loader image is generating it using the loader generator provided.
#

＃terminal_output console
if serial –unit=0 –speed=115200; then
　terminal_input –append serial_com0
　terminal_output –append serial_com0
fi

set default=”0″
set timeout=”5″
set timeout_style=”menu”

if [ -s $prefix/grubenv ]; then
load_env –file $prefix/grubenv –skip-sig
set has_env=”1″
if [ -n “${saved_entry}” ]; then
set default=”${saved_entry}”
fi
else
set has_env=”0″
echo “WARN: failed to load env. Default choice will NOT be saved!”
fi

function savedefault {
saved_entry=”${chosen}”
save_env –file $prefix/grubenv saved_entry
}

insmod usb_keyboard
insmod part_msdos
insmod ext2
insmod fat
insmod linux
insmod gzio

set gfxmode=auto
insmod vbe
insmod vga

UEFI

insmod efi_gop
insmod efi_uga

insmod font
if loadfont ${prefix}/unicode.pf2
then
insmod gfxterm
set gfxmode=auto
set gfxpayload=keep
terminal_output gfxterm
fi

menuentry ‘Yet Another Juns Mod x RedPill DS918+ v7.X (USB, Verbose)' { savedefault set root=(hd0,2) echo Loading Linux... linux /bzImage HddHotplug=0 withefi console=ttyS0,115200n8 netif_num=2 syno_hdd_detect=0 syno_port_thaw=1 vender_format_version=2 mac2=001132C516EC earlyprintk mac1=001132C516EB syno_hdd_powerup_seq=1 pid=0x1234 log_buf_len=32M syno_hw_version=DS918+ vid=0xABCD earlycon=uart8250,io,0x3f8,115200n8 sn=19C0PDN294509 elevator=elevator root=/dev/md0 loglevel=15 DiskIdxMap=00 SataPortMap=1 SasIdxMap=0 echo Starting kernel with USB boot Now its OK!
}

menuentry ‘Yet Another Jun`s Mod x RedPill DS918+ v7.X(SATA, Verbose)’ {
savedefault
set root=(hd0,2)
echo Loading Linux…
linux /bzImage HddHotplug=0 withefi console=ttyS0,115200n8 synoboot_satadom=2 netif_num=2 syno_hdd_detect=0 syno_port_thaw=1 vender_format_version=2 mac2=001132C518DE earlyprintk mac1=001132C518DF syno_hdd_powerup_seq=1 pid=0x1234 log_buf_len=32M syno_hw_version=DS918+ vid=0xABCD earlycon=uart8250,io,0x3f8,115200n8 sn=19C0PDN544809 elevator=elevator root=/dev/md0 loglevel=15 DiskIdxMap=00 SataPortMap=1 SasIdxMap=0
echo Starting kernel with SATA boot
echo WARNING: SATA boot support on this platform is experimental!
}
12345678910111213141516171819202122232425262728293031323334353637383940414243444546474849505152535455565758596061626364656667686970717273747576
保存，退出。
【2】bios 设置 windows8.x，（其实实测 windows7 也能刷，看教程要设置 8.x）
2.1 U盘启动盘，插主机箱后面 【黑色】 的usb上面。切记，一定是后面的黑色sub上，主板上的进不来bios，可以平时启动用

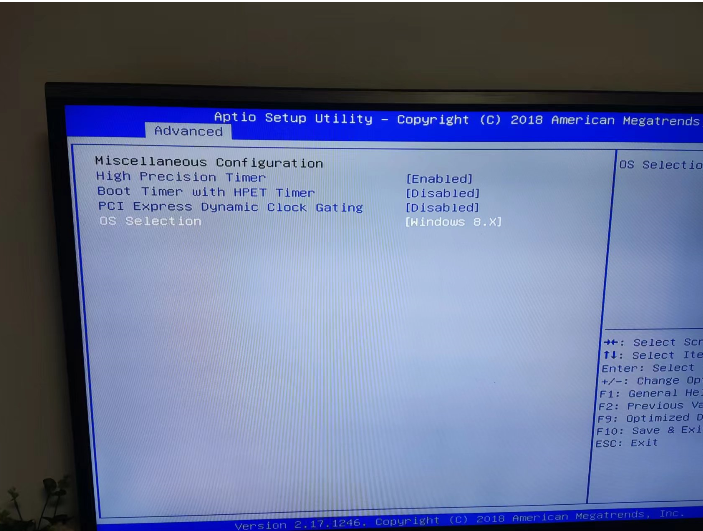

2.2 开机点按 F11 进bios页面。位置：Advanced->Miscellaneous Configuration->OS Selection

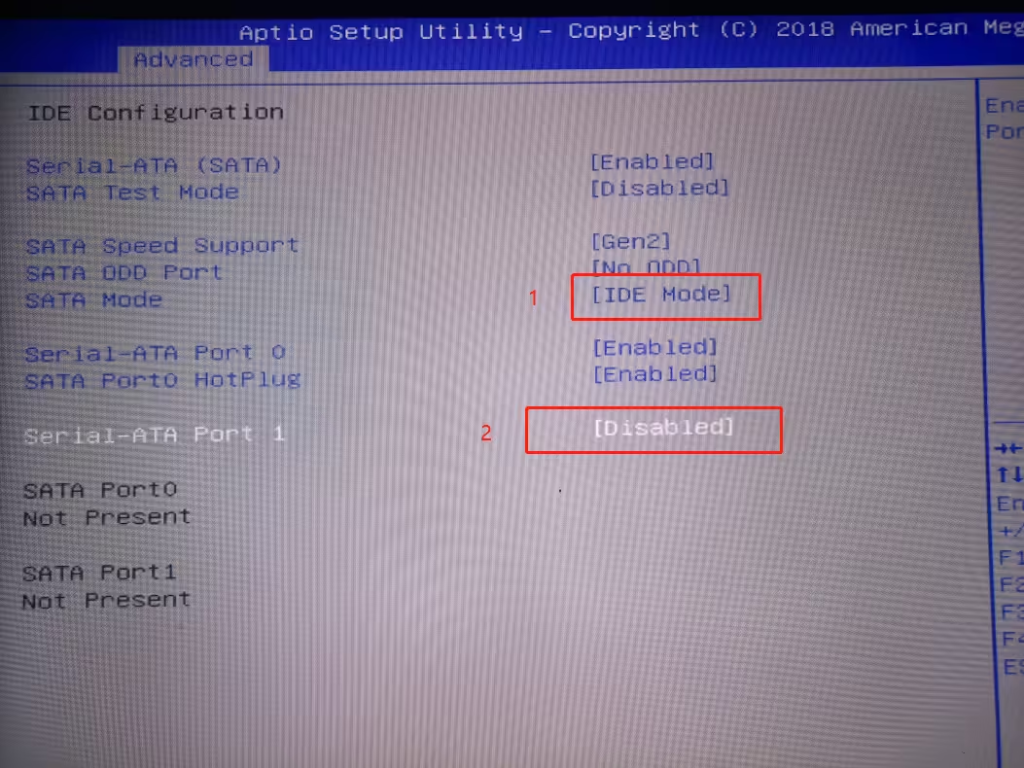

【3】设置 SATA Mode 为 AHCI。Port 1 设置 Enabled

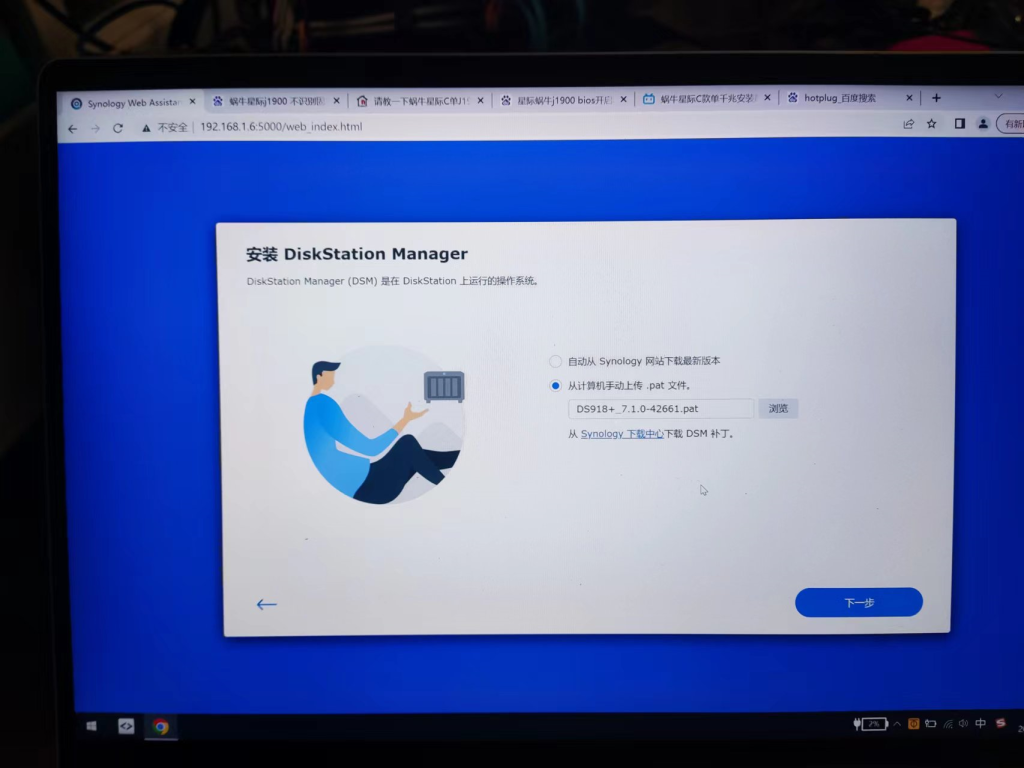

【4】选择本地pat

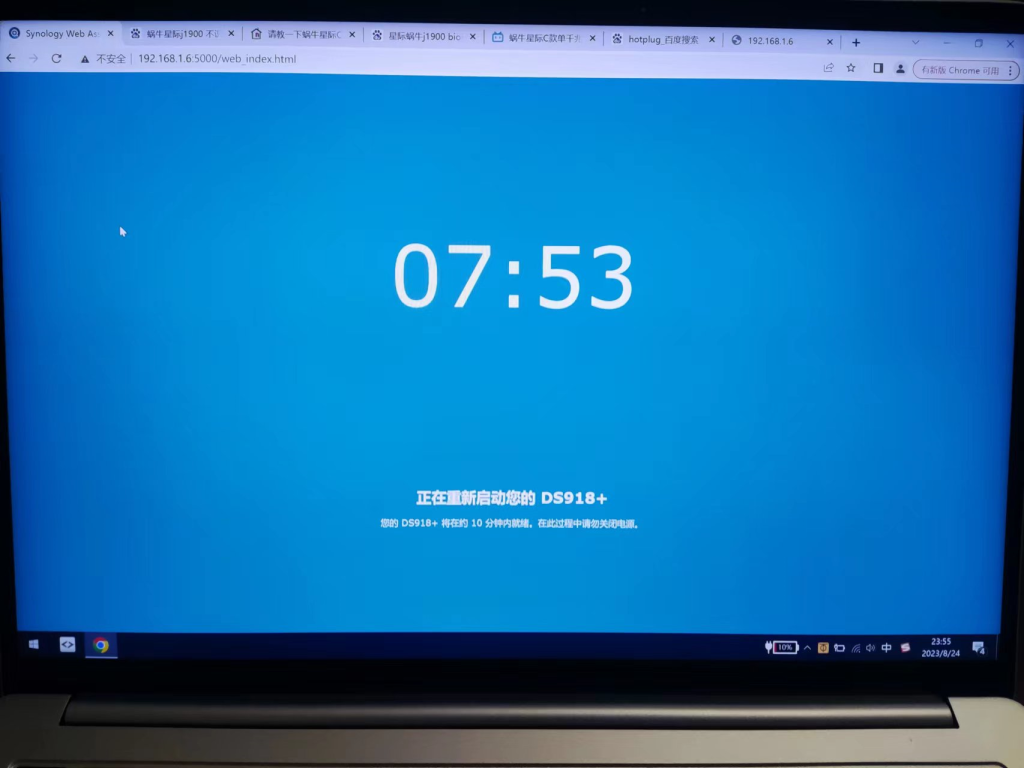

下一步： 等待完成100%，会有倒计时10分钟（其实用不到那么久，差不多五分钟就好了）

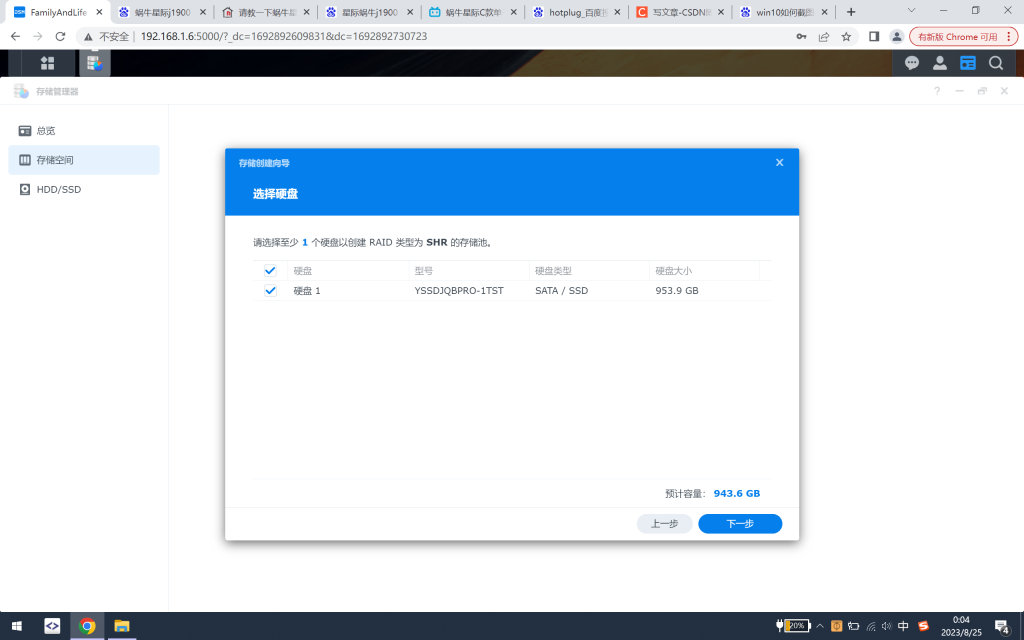

【5】设置新的储存空间
储存管理器 – 新增储存池 – 新建空间
